Bomba+Depósito Líquida Alphacool Eisbecherd5 150mm

Bomba+deposito liquida alphacool eisbecherd5 150mm bomba+deposito liquida alphacool eisbecherd5 150mm bomba vpp655 223,5x136x80 12v 23w 350l h 1012940

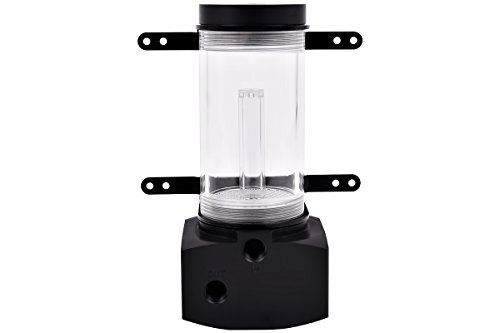

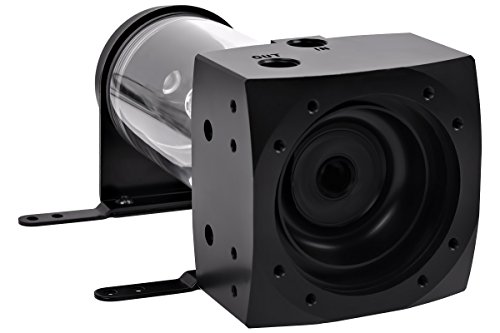

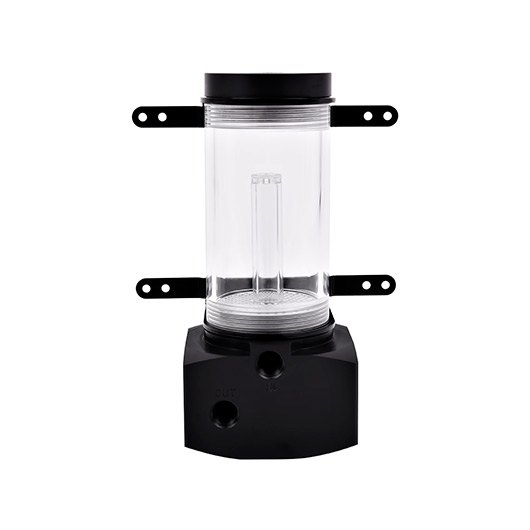

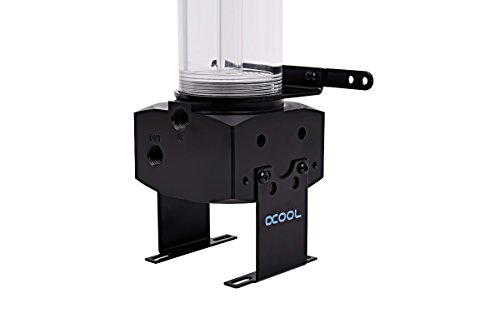

the eisbecher d5 this "eisbecher" is the big brother to the ddc version. the pump is mounted with a mounting ring which holds the pump with eight screws. four LEDs, which are plugged into the pump socket, illuminate this plexiglass version. the lighting module enables illumination from above. small rising pipes and bubble down also do their work perfectly here. the pump can be mounted either on the bracket or the included stands. in case there is space in the 3.5" hard drive cages in the case, the pump socket also comes with the appropriate screw threads (requires pump decoupling with m4 internal and external threads - art. 52007). included in delivery: 8x m4x12mm screws 8x m4x8mm screws 4x m4 nuts 1x mounting ring 1x o-ring id ca. 54mm 2x stands 1x hexagonal wrench 2.5mm dimensions - 150mm version: dimensions incl. bracket incl. stands (lxwxd): 223.5 x 136 x 80mm dimensions incl. bracket incl. stands (lxwxd): 223.5 x 87.5 x 80mm plexiglass tube diameter: 60mm capacity: 180ml pump: alphacool vpp655 - single edition technical details: dimensions (wxhxd): 65x65x57mm (without attachments) motor: electronically commutated spherical motor standard voltage: 12v dc power consumption: 23w acceptable voltage: 8-24v dc pressure at 12v: 3.7m water head maximum flow rate: 350l/h pump fluids: water, water/glycol mixture maximum system temperature: 60°c materials used: stainless steel 1.4571, pps-gf40, epdm o-rings, aluminium oxide, hard carbon special features: adjustable to five levels level 1: 1800 u/min level 2: 2550 u/min level 3: 3300 u/min level 4: 4050 u/min level 5: 4800 u/min power connection: 4 pin molex scope of delivery: 1x alphacool eisbecher d5 150mm acetal incl. 1x alphacool vpp655 download 3d-file (.stp) notice not intended for continuous operation with fluids containing titanium dioxide or glycerin. many pastel colours typically use these additives.
